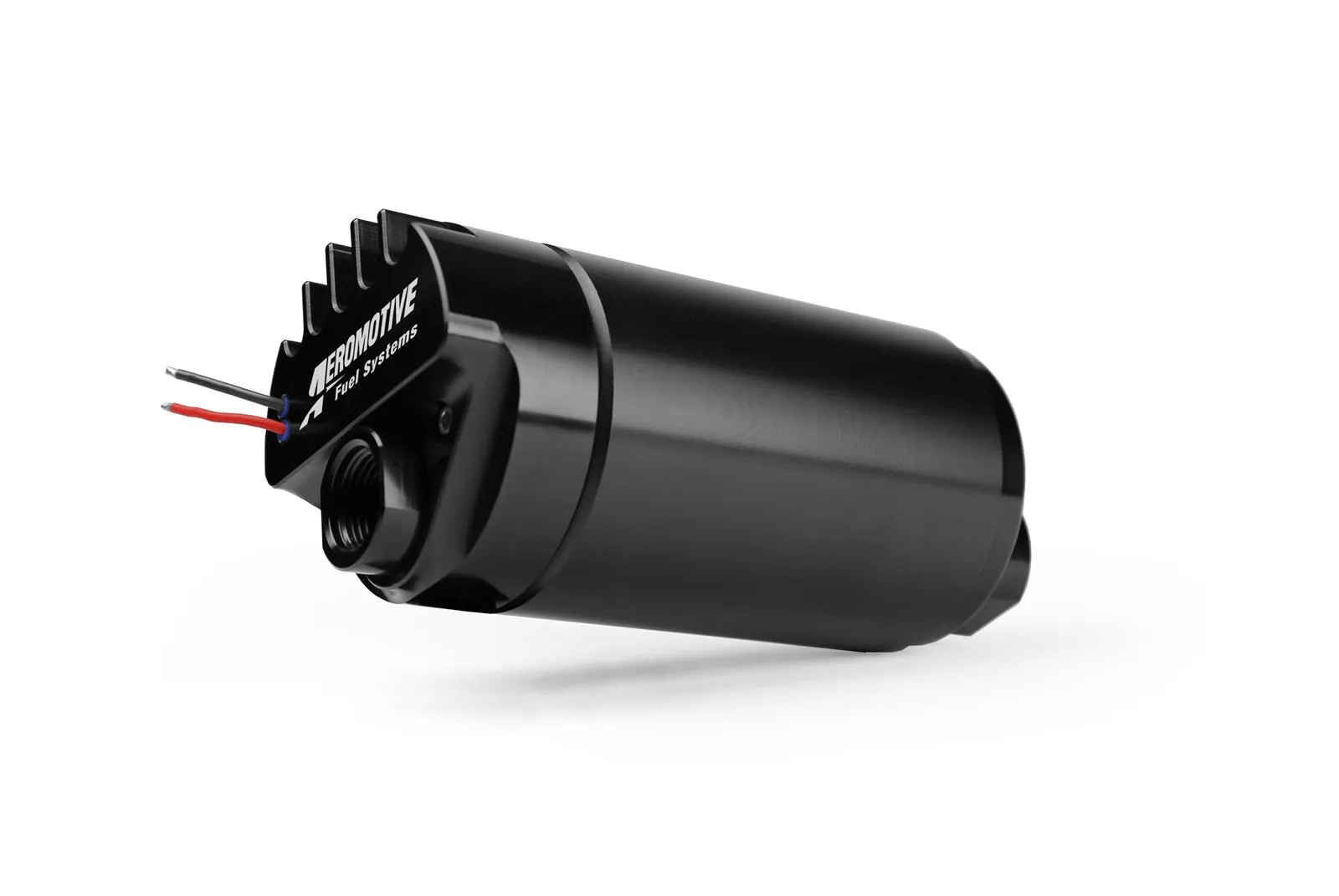

Brand: Aeromotive
Manufacturer's Part Number: 11189
Part Type: Fuel Pumps
Product Line: Aeromotive A1000 Brushless Variable Speed Fuel Pumps
Automotive Fittings Part Number: AEI-11189
UPC: 684980010886
Fuel Pump Type: Electric external
Flow Rate: 105 gph/397 lph
Fuel Pressure (psi): 90 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: -10 AN
Inlet Quantity: 1
Inlet Attachment: Female straight cut O-ring
Fuel Pump Outlet Size: -10 AN
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Not compatible with pulse modulated systems or fuel pump speed controllers.
Description:
Aeromotive A1000 brushless variable speed fuel pumps let you upgrade to a premium unit for faster, more dependable and uninterrupted fuel delivery—with less power consumption and potential for wear or failure. Utilizing the latest brushless motor technology, these pumps feature a bedrock solid roller vane design that primes easily, reduces friction, and improves efficiency. Producing more torque per watt and a higher torque-to-weight ratio, brushless motors deliver less noise and more reliability.

With a higher level of efficiency, down to fractions of a second in design speed control, Aeromotive A1000 brushless variable speed fuel pumps afford precise control via a 0-5 V analog DC input signal—better maintaining pump rpm and flow, producing a flatter flow curve. Tight tolerances result in less current draw, less heat, and extended life. Order the body style preferred for your application.

Features and specs include:

* ORB-10 inlet and outlet ports
* Fully submersible for custom, in-tank placement
* Fuel Injected engines:
-- up to 1300 FWHP – naturally aspirated
-- up to 1000 FWHP – forced air induction
* Carbureted engines:
-- up to 1500 FWHP – naturally aspirated
-- up to 1200 FWHP – forced air induction
