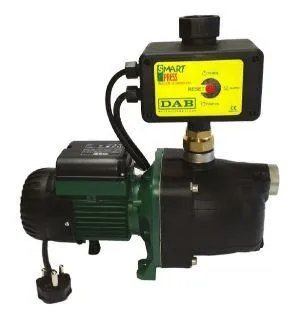

DAB Centrifugal Pump - Jetsmart Composite 82M

Product Description

• The unit with Active Driver is designed and manufactured to meet the needs for constant pressure required by modern plumbing systems.
• Constant pressure regulation is applicable to many sectors: Water supply for irrigation, industry, hotels, housing construction, thermal baths.
• The basic concept that guided our Engineers in the development of these units was to manufacture a system that is simple, flexible and reliable.
• Constant pressure, quiet operation, economical, reduced water consumption, smaller footprint.
• Less maintenance, dry-running protection, complete protection of the pump from faults.

Technical data

• Operating range: From 10 to 120 litres/min with head up to 59m.
• Liquid quality requirements: Clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral, close to the properties of water.
• Liquid temperature range:(for domestic use) from 0°C to 35°C (for other uses) from 0°C to 40°C.
• Maximum ambient temperature: 40°C
• Maximum operating pressure: 6 bar (600 kPa) for Jetcom AD1 and Eurocom. AD1.8 bar (800 kPa) for other models.
• Installation: Fixed in a horizontal position
• Motor protection rating: IP 44
• Terminal block protection rating: IP 55
• Insulation class: F
• Standard input voltage: Single phase 220/240 V / 50 Hz.
• Electric pump voltage: Three phase 220/240 V - 50 Hz.

Dimensions

• 500mm length x 240mm width x 470mm height
