Product Details
＋

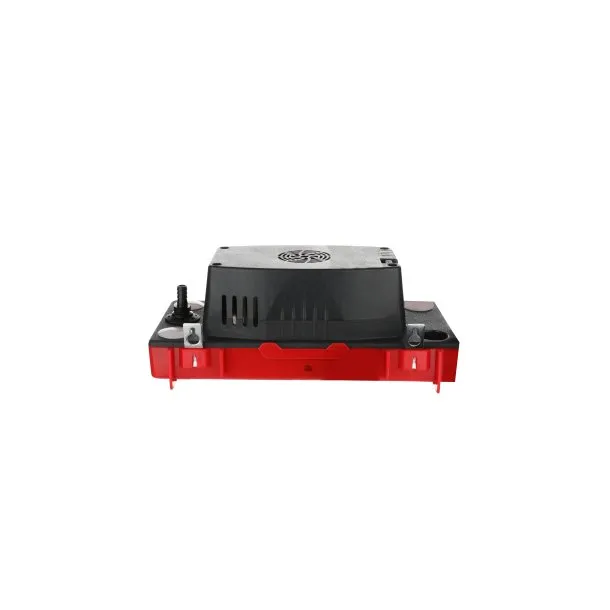

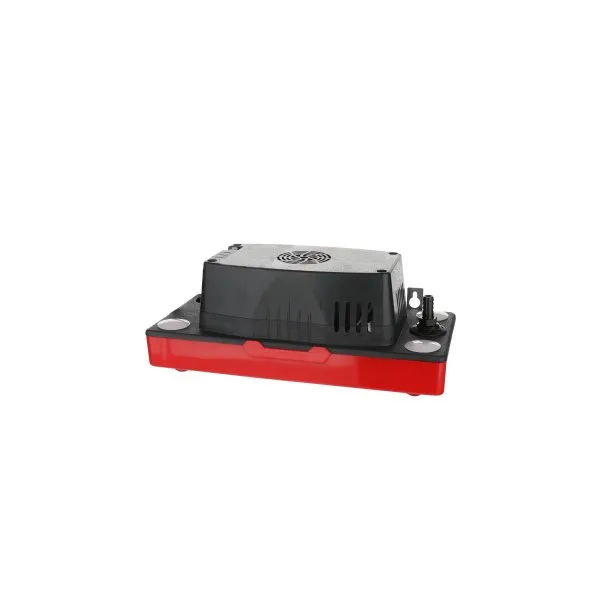

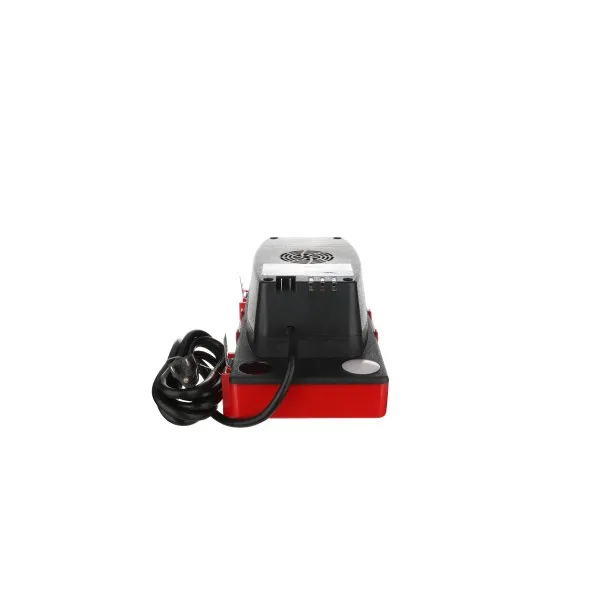

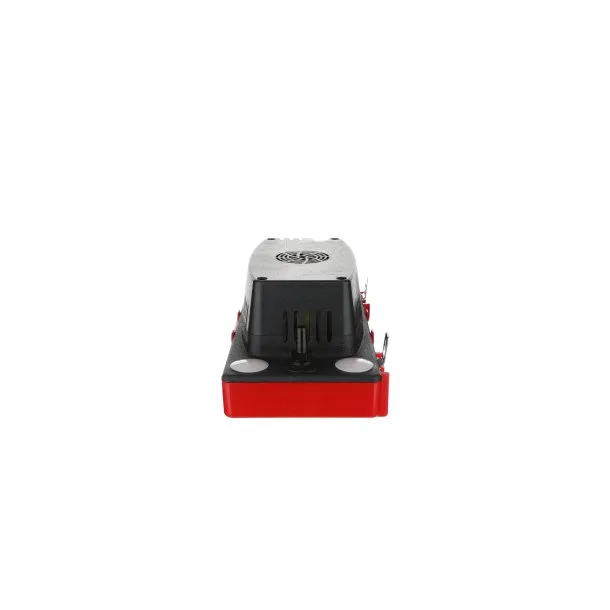

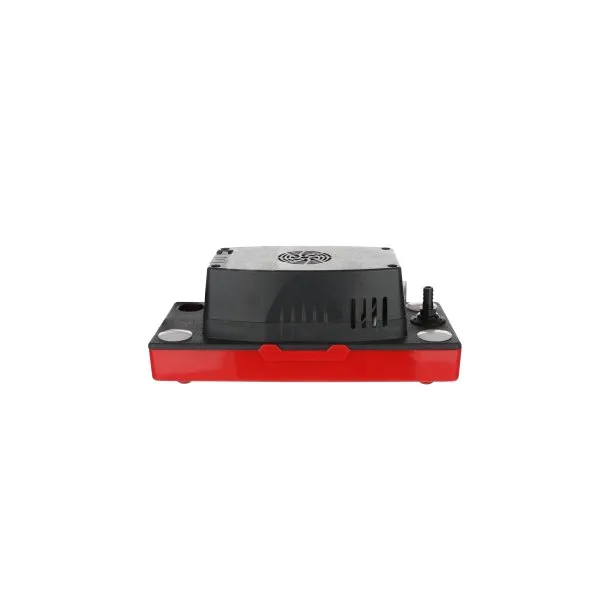

DiversiTech Asurity® CP-22LP Condensate Pump, 22 ft lift, 115 volts
Asurity® CP-22LP series pumps are great for tight spaces. They beat the industry standard of 20’ lift height by 2 feet, and come with innovative features such as: vibration dampening feet and motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, and detailed installation instructions. Two terminals are provided allowing the installer flexibility to connect air-handler shutdown, an important safety consideration.
The Asurity® CP-22LP Condensate Pump is only 4-3/8 inches tall. It is a great option when space is at a premium. The 120 volt pump features 22 ft of lift, vibration dampening feet and motor mounts, LED display, check valve, and overflow switch. The reservoir holds 1/3 gallon of condensate.
- LED indicators confirm pump status
- 22 ft maximum lift height
- Suitable for condensate up to 160° F
- Removable Reservoir for Easy Maintenance and Built-in Safety Overflow Switch
- Vibration dampening feet and motor mounts minimize sound
- Includes removable check valve and reversible deck for more installation options
- 4 inlet holes
- Vibration dampening feet and motor mounts minimize sound
Specifications
| Volts: | 115 |
| Amps: | 1.9 |
| Hertz: | 60 |
| Horsepower: | 1/30 |
| Floatless Sensor: | No |
| High Level Switch: | Yes |
| Max Condensate Temp. (Degrees): | 160°F |
| Max Flow Rate (GPH): | 132 |
| No. of Inlets: | 4 |
| Self-Cleaning: | No |
| Tank Capacity (Gal.): | 1/3 |
| Variable Speed and Lift: | No |
