This compact, lightweight pump has been designed for under-deck mounting. The body and ports can be positioned 96 different ways for maximum flexibility of installation. Simple, reliable and inexpensive, this pump will withstand whatever the elements have to throw at it and will give years of trouble free use.

The pump is made from tough polypropylene with stainless steel fastenings and removable stainless steel handle. The rocker arm is epoxy powder coated aluminium and a Nitrile diaphragm is fitted as standard.

The pump has 1" hosetail connections fitted and 1¹/₂" connections are supplied loose to fit if required. These are very easy to fit.

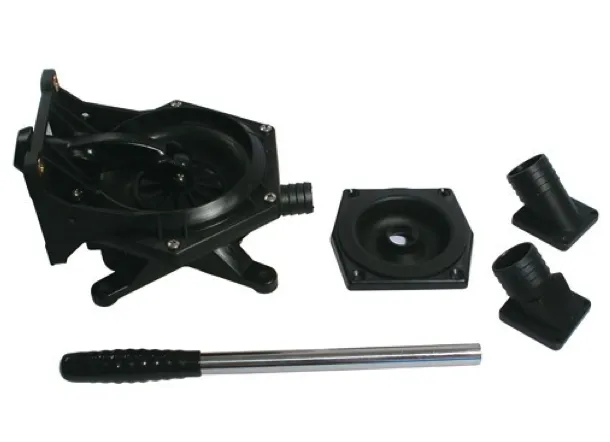

The deck plate and rubber gasket are supplied with fixings, as illustrated, for underdeck mounting.

Specification

• Capacity: Up to 80 ltrs/min
• Lift: 6m
• Head: 4.5m
• Connections: For either 1" (25mm) or 1 1/2" (38mm) hose
• Body Material: Polypropylene
• Fixing Material: Stainless Steel
• Diaphragm/Seal Material: Nitrile (Buna -N) / NBR
• Weight 1.1kg
