Robust and lightweight polypropylene manual bilge pump range.Combines powerful performance and lightweight design.Gusher Titan is Whale’s tough lightweight proven pump. A design that has been tried tested and trusted by sailors for decades. Two models available On Deck or Thru Deck/ Bulkhead

Key Features

• Whale's high performance lightweight model.
• High flow rate: 105 ltrs (28 US gals) per minute
• Clamp ring easily removed for pump head rotation
• Tough yet lightweight proven design
• 2 mounting options - bulkhead and thru deck models
• Quick maintenance - Clamp ring easily removed for pump head rotation
• Typical Uses: bilge pump out, Holding tank pump out, Toilet flush
• Ease of operation - Self priming and spring assisted outlet valve
• Straight forward installation

Specification

• Hose Connections : 38mm (1.5")
• Maximum Suction Lift : 4m (13.5ft)
• Maximum Discharge Head : 4m (13.5ft)
• Suction Lift : On Deck Model 1 m (3 ft), Thru Deck Model 2m (6ft)
• Discharge Head : Both Models  0.5 m (1.5ft)
•  45 Strokes Per Minute : On Deck 67 ltrs (18 US Gals), Thru Deck 65 ltrs (17 US Gals)
• 70 Strokes Per Minute : On Deck 105 ltrs (28 US Gals), Thru Deck 98 ltrs (26 US gals)
• Weight : On Deck 1.5 kg (3.3lbs), Thru Deck 1.85 kg (4.1lbs)

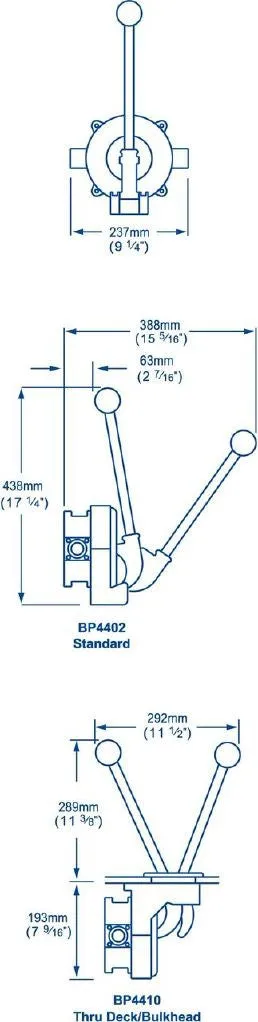

• Dimensions : See Images

Models

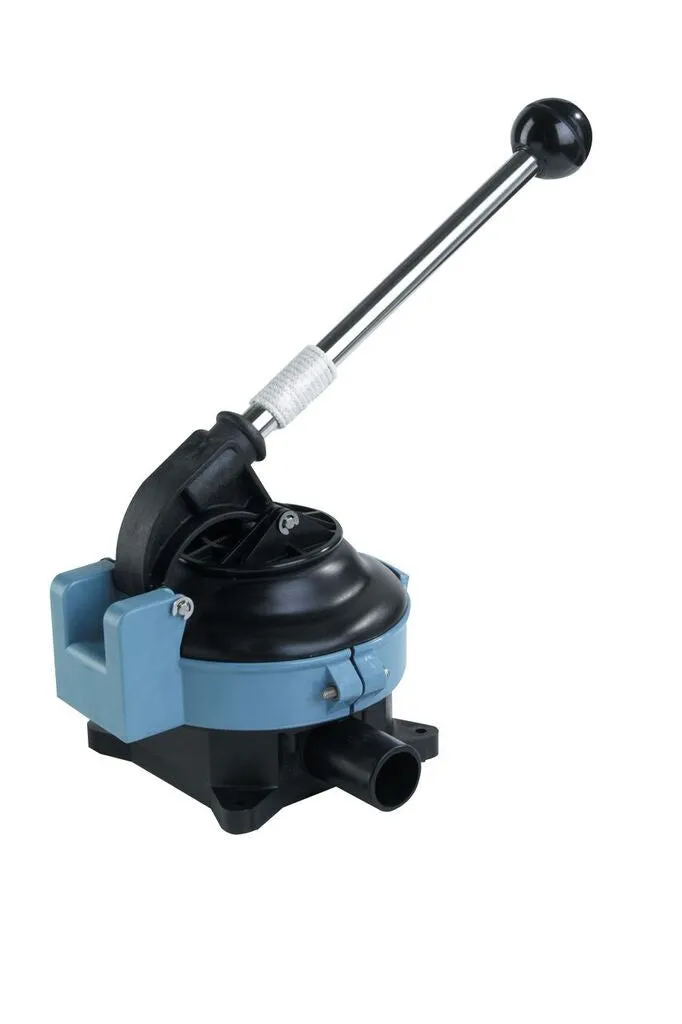

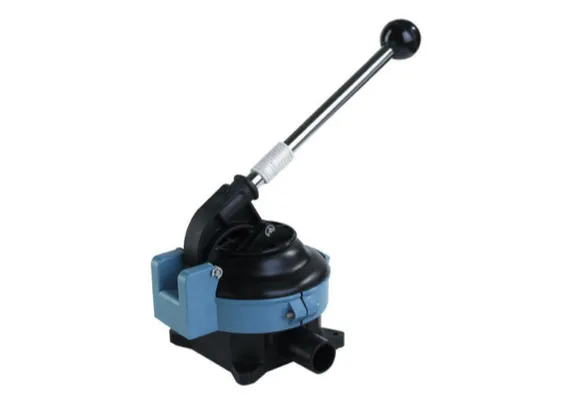

• Gusher Titan Standard

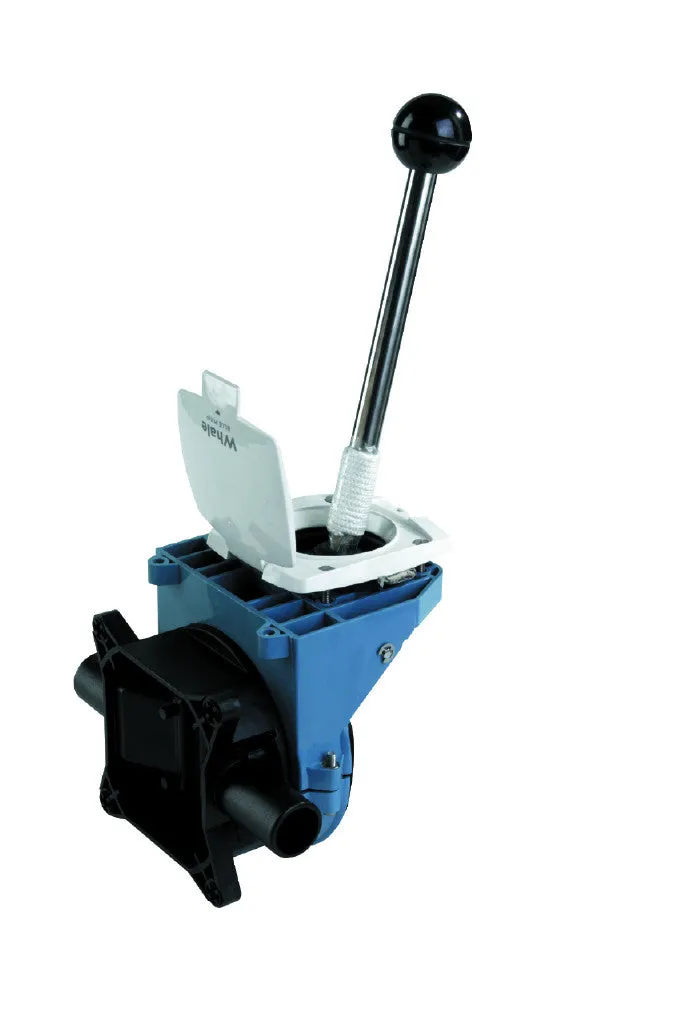

• Gusher Titan Underdeck
• Gusher Titan Standard Nitrile

It is important to ensure that a vented anti-syphon loop is incorporated in the system.

Awards and accreditations

ISO150831- Suitable as a primary bilge pump on boats equal to or greater than 12 m (40ft) in accorance with ISO150831
