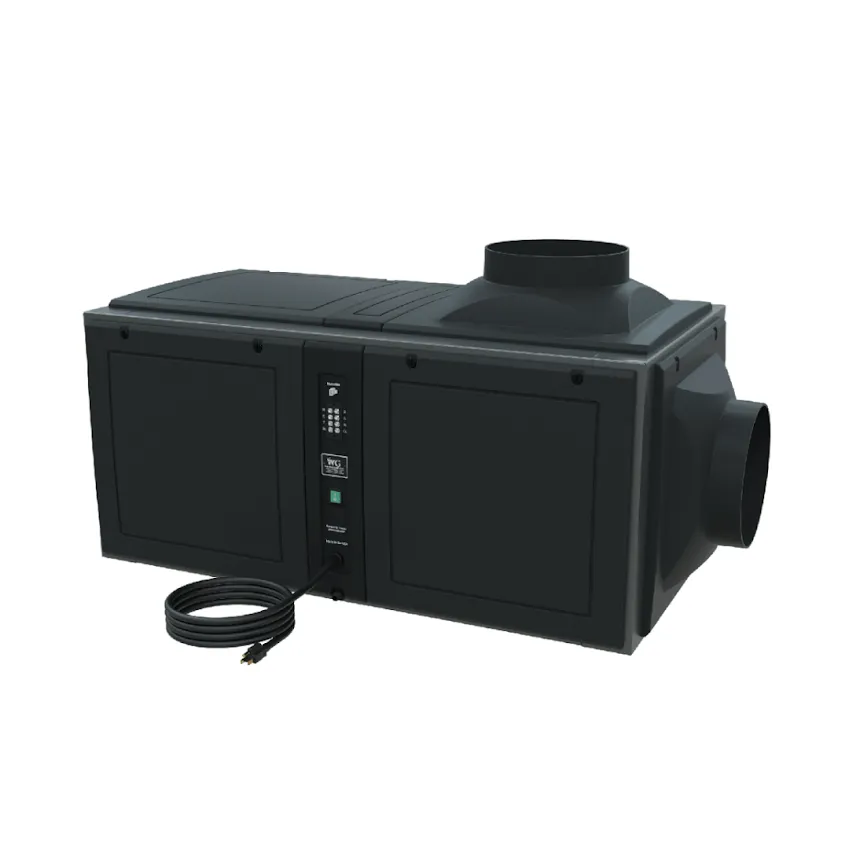

Name: Wine Guardian DP88WC Ducted Commercial and Residential HVAC 60 HZ
SKU: 388518

Product Details ＋

Wine Guardian DP88WC Ducted Pro Commercial and Residential HVAC Sentinel Series - 60 HZ Review

Looking for an energy-efficient and reliable wine cellar cooling system for your wine collection? Check out Wine Guardian DP88WC Ducted Pro Wine Cooling Unit - 60 HZ!

NOTE: Wine Guardian Pro Systems use 24-volt electronics. The DP88WC operates on a 60Hz system, which is commonly used in most of North America, including the USA and Canada. It has a unit capacity of up to 9,600 BTU/h.

The Wine Guardian DP88WC Ducted Wine Cellar Cooling Unit Pro Sentinel Series - 60 HZ is a great cooling solution for medium to with volumes ranging from 850 to 4,500 cubic feet.

The DP88WC has advanced refrigeration controls and works with modern smart thermostats. It has more duct collar connections located at the condensing part of the cooling unit for additional ducting options, and it also includes an Electric Heat option with a factory-mounted heater for protection against low ambient temperatures.

Ideal for applications such as , document preservation, instrument storage, and long-term food storage, this Pro Ducted system can maintain temperatures between 52-70°F (11-21°C.) And with 24-volt electronics, these systems can easily integrate with your existing smart home or commercial building management system. With up to three times more insulation than previous versions, this system is designed to be the strongest and most efficient on the market.

Other sizes: for 250-2000 cu.ft, for 650-3000 cu.ft, and for 1500-7000 cu.ft.

Available in air-cooled version:

Available in standard water-cooled version:

Looking for more options to protect your wine collection?

Wine Guardian offers the following options to provide extra protection:

Standard: The standard unit comes with low ambient protection, which protects it against cold temperatures that fall below 5°C (40°F).
Standard w/ Electric Heater: This feature protects wine cellars from extremely low temperatures by allowing you to set activation between 2 - 6°F (-17 - -14°C) below your desired setpoint.

To preserve the quality of your wine collection, it's important to maintain the proper level. Temperature control alone won't suffice, so we advise using Wine Guardian Humidifiers. Although these are not mandatory, we highly suggest investing in one. You can attach the Integrated Humidifier to your DP88WC wine cooler unit or choose the Wine Guardian Freestanding Humidifier if you prefer it to be separate.

What are Water-Cooled Cooling Systems?

Wine Guardian Water-Cooled Wine Cooling Systems are perfect if you have a year-round water source. These systems are designed to eliminate the need for heat exhaust and are only available for self-contained ducted systems. They are effective for geothermal, cooling tower, and lake water applications. The DP88WC wine cooling unit can be configured to feature a water-cooled condensing coil and water-regulating valve that are pre-installed at the factory.

Advantages of Wine Guardian Ducted Cooling Systems

Wine Guardian ducted systems are versatile and self-contained. Designed to be extremely flexible in terms of installation and design. These systems use advanced cooling technology to create the perfect environmental conditions for wine collections of any size and in any type of space — including residential, restaurant, or commercial wine cellars.

Wine Guardian wine cellar cooling ducted systems have everything needed in a single unit — evaporator, fans, compressor, condenser, and controls. A grille inside the cellar wall is connected to the self-contained unit outside of the wine cellar insulated flexible ductwork. They're one of the !

Searching for more options? Check out our selection of . You can also browse through our .

Be creative with your wine cellar design with unique wine racks from !

WHY BUY FROM US: Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, and wine room humidifiers. More Wine Guardian reviews can be found on our page.

for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our .

Buy Wine Guardian DP88WC Ducted Pro Sentinel Series Wine Cooler Units - 60 HZ today and enjoy your amazing wines at their best temperature!

Features

Features:

WATER-COOLED SYSTEM
Water-cooled systems eliminate the need for heat exhaust, making them ideal for wine cellar projects that have the following:
> Geothermal sources
> Cooling towers
> Year-round water sources

MADE FOR DUCTED SYSTEMS
Only self-contained ducted systems have water-cooling features. These ducted systems give the perfect wine cellar temperature and are virtually invisible in your cellar. You can install them easily without cutting copper or having a licensed contractor on site.

INSTALLATION WITHOUT THE HASSLE
Ducted wine cellar cooling units are made easy to install for contractors. All they need to do is connect the ductwork, make the drain connection, and plug it in – no copper cutting required, and no licensed contractor necessary on-site.

If you need to install the wine cellar cooling system against a wall or ceiling, that's easy too. You can configure the ducts in multiple ways without having to remove the fan motor or any other internal parts.

SIMPLE AND EFFICIENT
Wine Guardian systems are engineered with installers in mind. They created Water-cooled systems that are easy to install and maintain by incorporating the following features:
> Integral water regulating valve to increase efficiency in operation.
> A main control board that links to geothermal pumps for better control.
> Water connection points located on the unit's side for easy access.
> Can work with water temperatures ranging from 45°F (7°C) to 85°F (29°C).

OPTION BUNDLES
Do you have a special project that needs humidification or heat? Want to cool your cellar to the right serving temperature? Water-cooled systems can be combined with different options and accessories, so you can adjust the conditions in your wine storage to match your wine's requirements.

FULL CONTROL IN ANY ROOM
The remote interface controller for the ducted system lets you adjust the temperature and check the humidity levels. The controller uses Wine Guardian's Wireless2Base™ Technology, which means you can place it anywhere that's convenient for you – in the cellar, kitchen, or living room. If you need to measure the temperature and humidity levels outside the cellar, you can connect an additional controller and remote sensors to get accurate readings. This makes it easy to keep an eye on your wine room's conditions from anywhere in your home.

SERVICEABILITY SIMPLIFIED
Wine Guardian self-contained wine room cooling units are designed to be simple for servicepersons to maintain. With easy quarter-turn fasteners, they can quickly access the ducted unit, make any necessary repairs, and move on to the next job. What's more, unlike other competitors, all Wine Guardian units can be fully serviced in the field, without needing to be sent back to the factory. This saves you time and money and ensures that your cooling system stays up and running smoothly.
SENTINEL SERIES
All ducted systems are now a part of the Wine Guardian Sentinel Series. This new series is an updated and improved design that features an all-new composite material that makes the system stronger, more efficient, and more beautiful than ever before.

Specifications

Specifications:

Model: DP88WC
Line Frequency: 60 HZ
Capacity: 5000 – 9600 BTU
Volume: 850 – 4500 ft³
Length: 41.5"
Width: 22.5"
Height: 19"
Weight: 125 lbs
Electrical: 208-130/1/60

Manuals

Manuals:

Manufacturer's Warranty

Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of invoicing assuming NORMAL USE AND SERVICE

Need assistance? Talk to an Expert at 1-888-407-7770 or email: [email protected] to get the best-suited wine cooling system for your needs.

Options

Available Options

You may upgrade the performance and durability of your wine cooling systems by adding Wine Guardian parts and accessories. The system is upgraded and protected by these add-ons.

Cooling Options

Standard w/ Electric Heater
Keep your wine cellar protected from dangerously low temperatures with the Electric Heater option. This add-on is adjustable and allows activation to be set between 2 - 6°F (-17 - -14°C) below your desired temperature.

With this feature, rest assured that your wine will be kept safe from extreme temperature drops. Invest in an Electric Heater to ensure that your wine collection is always kept at the .

Humidifier Options

Integrated Humidifier
Humidifiers help maintain the ideal wine storage conditions by adding moisture to the wine space. The Wine Guardian Integrated Humidifier directly attaches to the Wine Guardian cooling system, using the same power source and remote controller.
Freestanding Humidifier
The Wine Guardian Freestanding Humidifier is installed inside the wine cellar to maintain the ideal level of humidity required for proper long-term storage. The humidifier can be operated using the existing Wine Guardian controller.

Warranty Options

Extended Warranty
By choosing this option, the warranty period for the compressor, evaporator coil, and condenser coil (parts only) will be extended by three (3) years.
